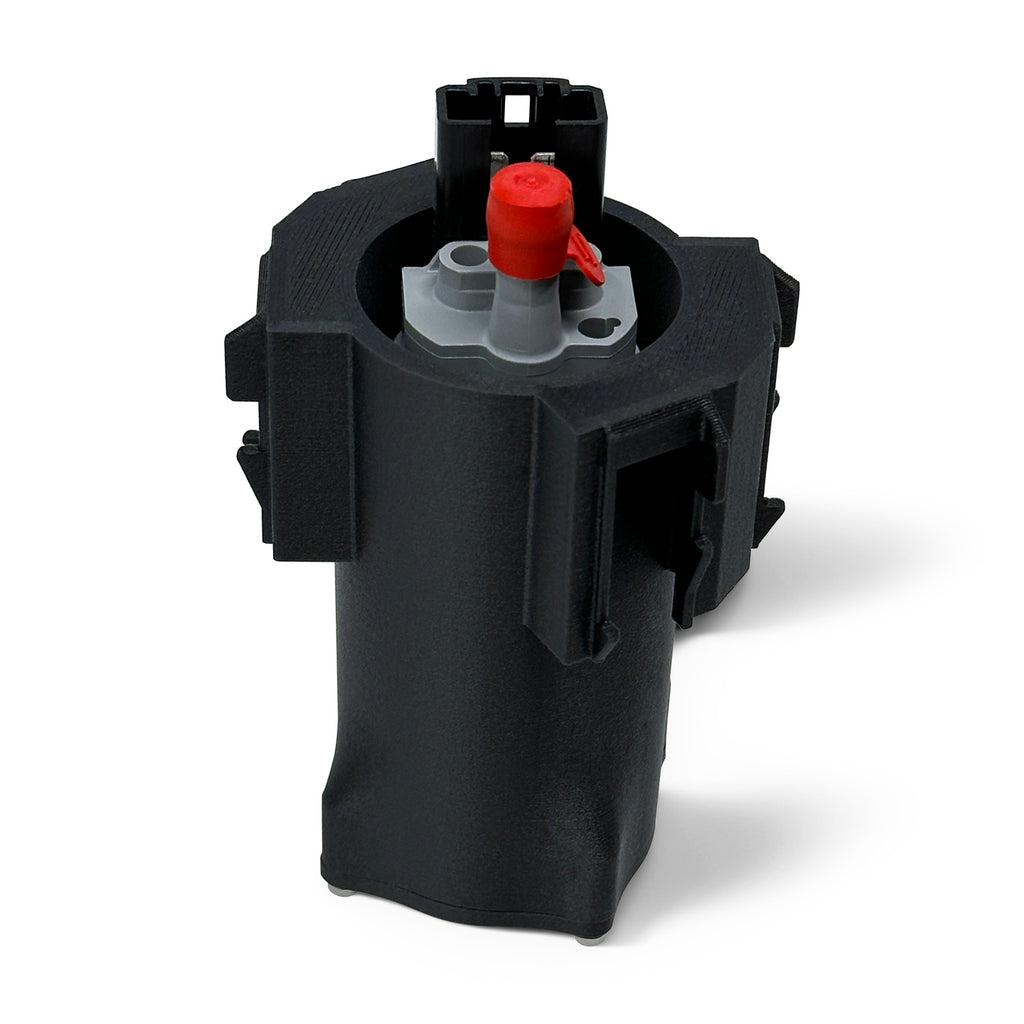

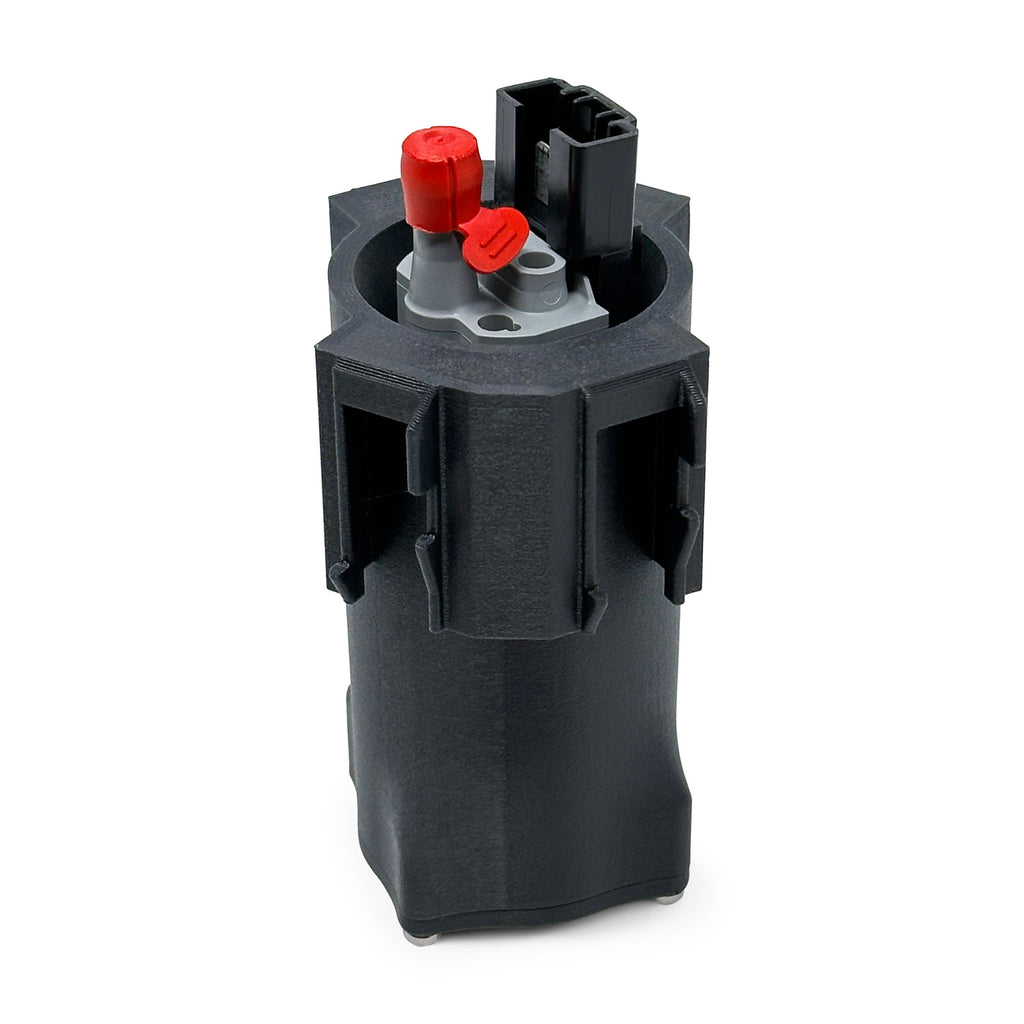

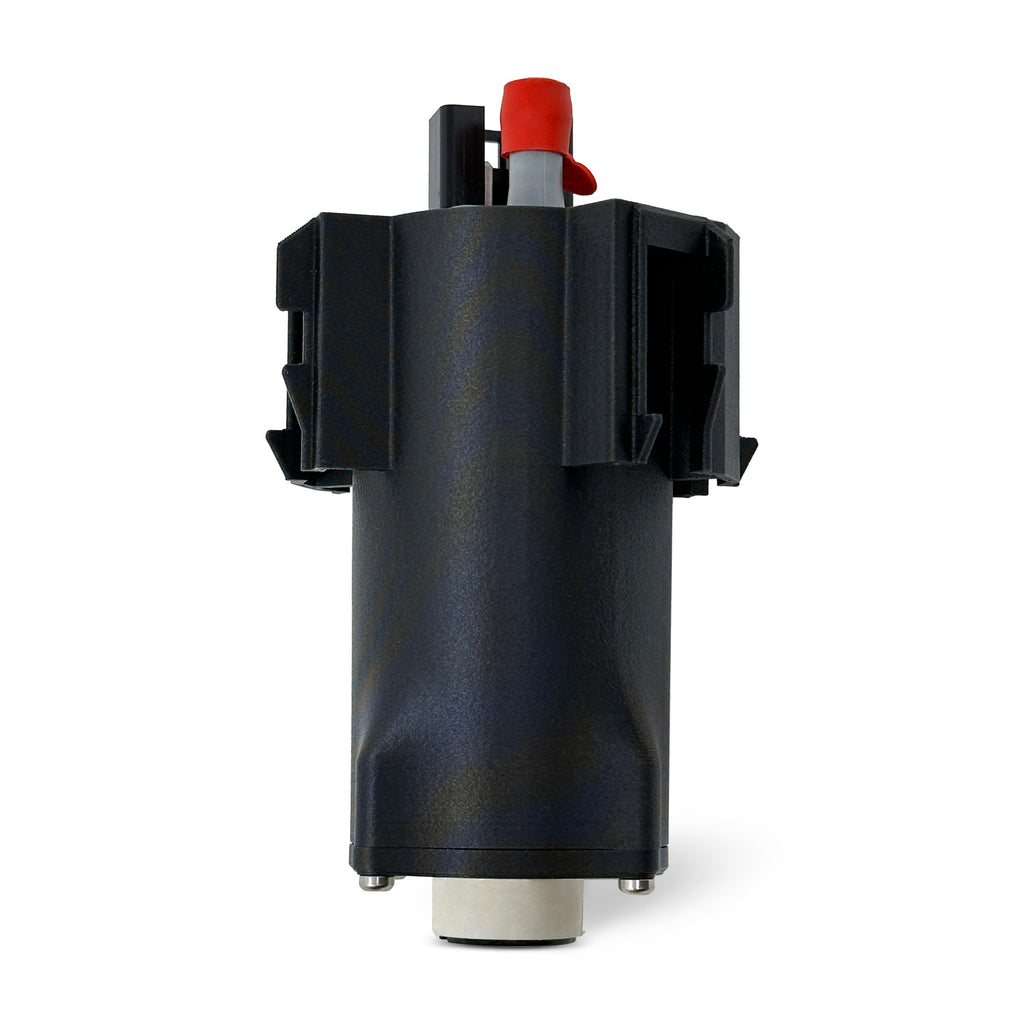

BMW E32 E34 Plug-N-Play Fuel Pump Basket for Walbro 450 / 485 / 525 Fuel Pumps

Plug-N-Play Walbro Fuel Pump Basket for BMW E32 & E34

Upgrade your fuel system without the fabrication headaches. This precision-engineered fuel pump basket allows you to mount high-flow Walbro 450, 485, or 525 fuel pumps directly into your BMW E32 or E34 using the factory fuel pump bracket. Simply replace your OEM basket, drop in your Walbro pump, and you've solved the hardest part of the install - no cutting, no drilling, no zip-tie solutions.

Fitment:

• BMW E32 (7-Series, 1986-1994)
  • 735i, 735iL (1986-1992)
  • 740i, 740iL (1993-1994)
• BMW E34 (5-Series, 1989-1995)
  • 525i, 525iT (1989-1995)
  • 530i, 530iT (1994-1995)
  • 535i (1989-1993)
  • 540i (1994-1995)
  • M5 (1988-1993)

Compatible with OEM Fuel Pump Bracket:

• BMW Part Number: 16141179119

Compatible Fuel Pumps:

• Walbro 450LPH (F90000267 / TIA485-2)
• Walbro 485LPH (F90000274)
• Walbro 525LPH (F90000285 / Hellcat)

Fuel Pump HP Support (Turbo Applications):

• Walbro 450/485: Supports 500+HP (E85) / 700+HP (gasoline)
• Walbro 525 Hellcat: Supports 650+HP (E85) / 800+HP (gasoline)

Advanced Material Properties

Manufactured from carbon fiber reinforced polyphthalamide (PPA-CF) and heat-treated for maximum durability, this basket delivers industrial-grade performance in the harshest fuel system environments.

Material Specifications:

• Heat Deflection Temperature: 220°C (428°F) - far exceeding in-tank temperatures
• 15% Carbon Fiber Content: Provides exceptional dimensional stability and rigidity
• Ultra-Low Moisture Absorption: Maintains structural integrity when submerged in fuel
• Superior Chemical Resistance: Fully compatible with gasoline, E85, and ethanol blends
• Resistant to: Oils, fuels, solvents, and acidic/alkaline substances

Key Features:

• Plug-N-Play Mounting - Direct replacement for OEM basket, works with factory fuel pump bracket (16141179119)
• E85 Compatible - Material tested and validated for use with ethanol fuels
• Heat-Treated Construction - Annealed for enhanced mechanical properties and long-term dimensional stability
• Precision Fit - Engineered to exact tolerances for secure pump retention

Why Upgrade?

The factory BMW fuel pump simply cannot keep up with modified engines. Whether you're running a turbo M30, supercharged M60, or pushing serious boost on your E34 M5, adequate fuel delivery is critical. This basket eliminates the typical Walbro mounting hassles - no more cutting up your OEM basket, no more hacking together a sketchy mount, no more wondering if your pump will shift under hard cornering.

Installation Notes:

This basket handles the mounting - you'll still need to sort out your own wiring and fuel lines for the Walbro pump. Remove the factory fuel pump assembly from the tank, replace the OEM basket with the podio1 basket, install your Walbro pump, and complete your wiring and line connections. Walbro pump, wiring, and installation hardware sold separately.

What's Included:

• 1x PPA-CF Fuel Pump Basket (heat-treated)

Technical Specifications:

• Material: Carbon fiber reinforced polyphthalamide (PPA-CF)
• Carbon Fiber Content: 15%
• Heat Deflection Temperature: 220°C / 428°F
• Chemical Resistance: Gasoline, E85, ethanol, oils, solvents
• Construction: Heat-treated/annealed for maximum durability
• Compatibility: Walbro 450/485/525 series pumps
• OEM Bracket Fitment: 16141179119

podio1 - Performance parts designed for those who finish first.
