BMW E32 E34 Plug-N-Play Fuel Pump Basket for Walbro 255 Fuel Pumps

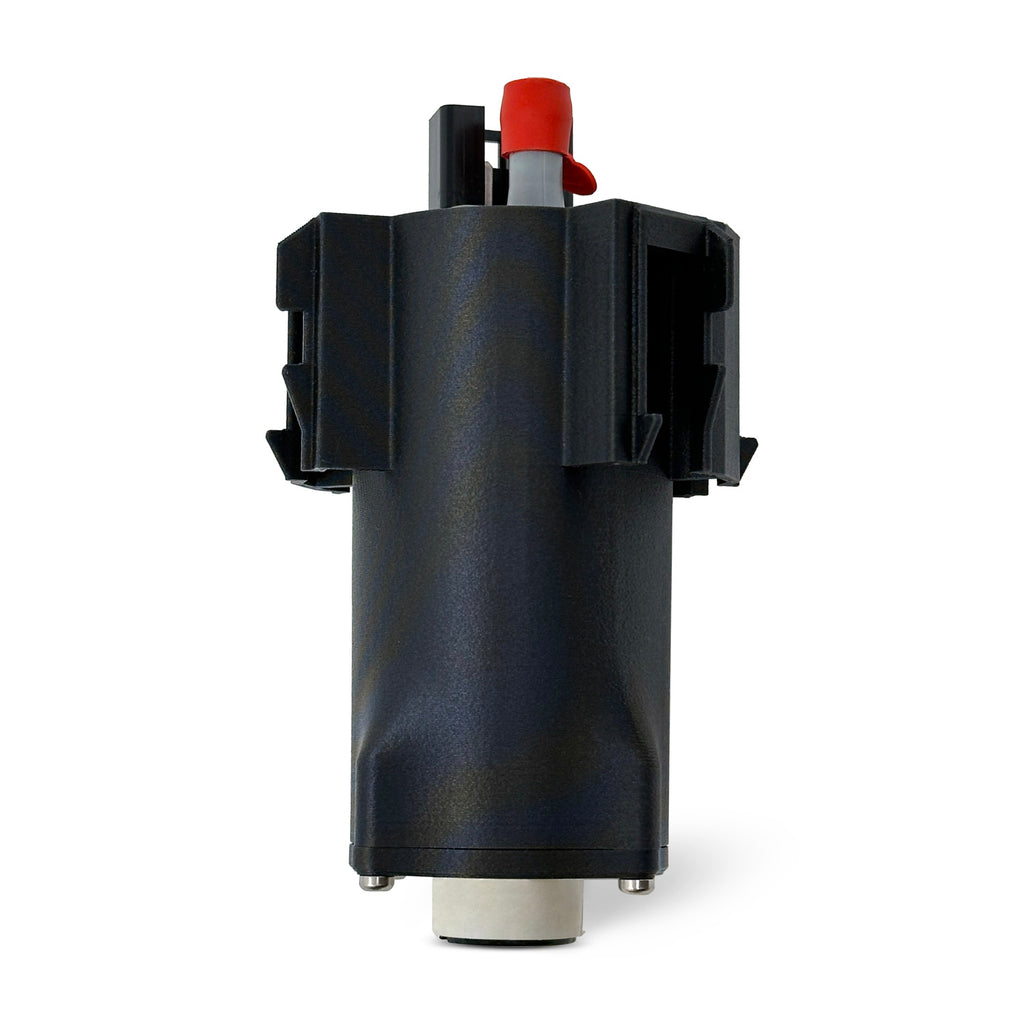

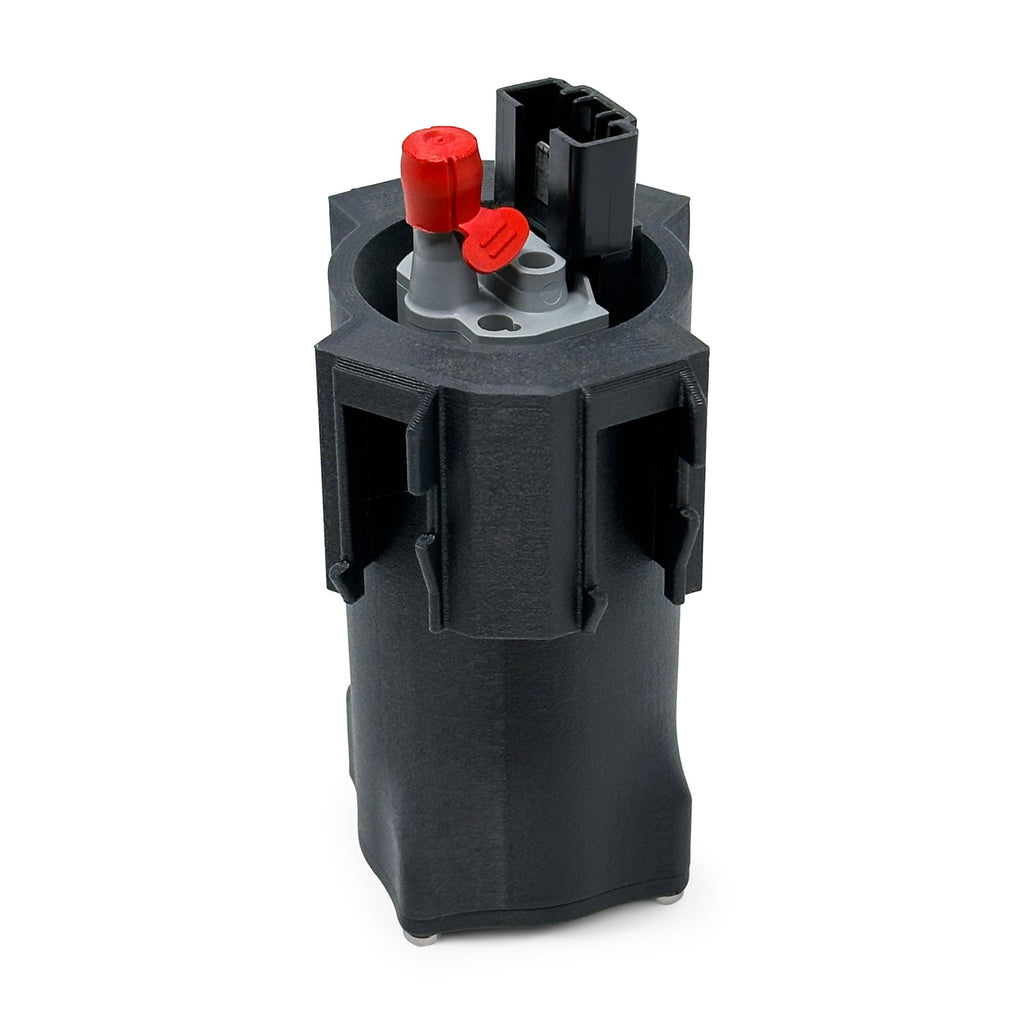

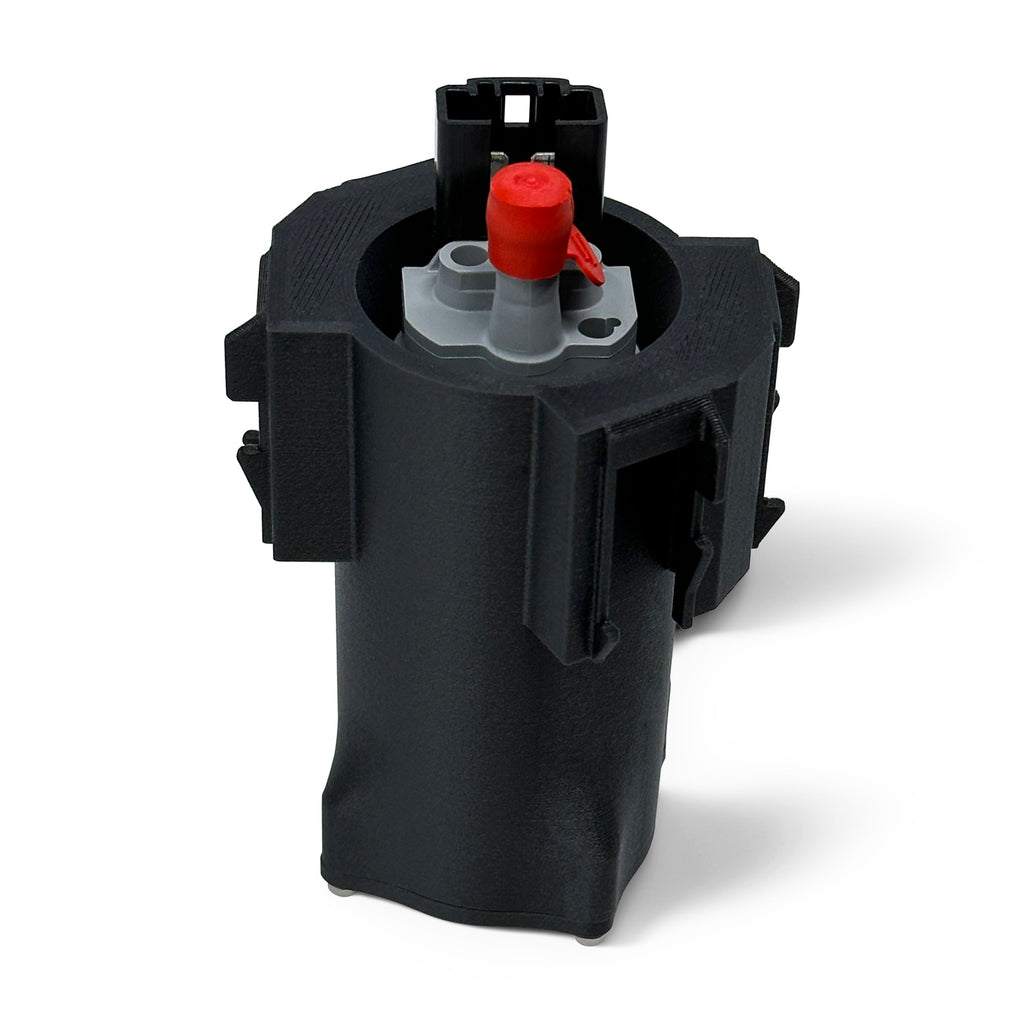

Plug-N-Play Walbro 255 Fuel Pump Basket for BMW E32 & E34

Upgrade your fuel system without the fabrication headaches. This precision-engineered fuel pump basket allows you to mount Walbro 255LPH fuel pumps directly into your BMW E32 or E34 using the factory fuel pump bracket. Simply replace your OEM basket, drop in your Walbro pump, and you've solved the hardest part of the install - no cutting, no drilling, no zip-tie solutions.

Fitment:

• BMW E32 (7-Series, 1986-1994)
  • 735i, 735iL (1986-1992)
  • 740i, 740iL (1993-1994)
• BMW E34 (5-Series, 1989-1995)
  • 525i, 525iT (1989-1995)
  • 530i, 530iT (1994-1995)
  • 535i (1989-1993)
  • 540i (1994-1995)
  • M5 (1988-1993)

Compatible with OEM Fuel Pump Bracket:

• BMW Part Number: 16141179119

Compatible Fuel Pumps:

• Walbro GSS340 (255LPH)
• Walbro GSS341 (255LPH)
• Walbro GSS342 (255LPH)
• Walbro F20000312 (255LPH High Pressure Relief)
• Walbro F20000313 (255LPH High Pressure Relief)

Walbro 255 Pump Specifications:

• Flow Rate: 255 LPH
• HP Support: 500+ HP (gasoline, turbo applications)
• Fuel Compatibility: Gasoline only (not E85 compatible)
• Design: Gerotor

Advanced Material Properties

Manufactured from carbon fiber reinforced polyphthalamide (PPA-CF) and heat-treated for maximum durability, this basket delivers industrial-grade performance in the harshest fuel system environments.

Material Specifications:

• Heat Deflection Temperature: 220°C (428°F) - far exceeding in-tank temperatures
• 15% Carbon Fiber Content: Provides exceptional dimensional stability and rigidity
• Ultra-Low Moisture Absorption: Maintains structural integrity when submerged in fuel
• Superior Chemical Resistance: Fully compatible with gasoline and ethanol blends
• Resistant to: Oils, fuels, solvents, and acidic/alkaline substances

Key Features:

• Plug-N-Play Mounting - Direct replacement for OEM basket, works with factory fuel pump bracket (16141179119)
• Heat-Treated Construction - Annealed for enhanced mechanical properties and long-term dimensional stability
• Precision Fit - Engineered to exact tolerances for secure pump retention

Why Upgrade?

The factory BMW fuel pump simply cannot keep up with modified engines. Whether you're running a turbo M30, supercharged M60, or building a street/strip E34, adequate fuel delivery is critical. The Walbro 255 has been the go-to performance fuel pump for decades - proven, reliable, and cost-effective. This basket eliminates the typical mounting hassles - no more cutting up your OEM basket, no more hacking together a sketchy mount, no more wondering if your pump will shift under hard cornering.

Installation Notes:

This basket handles the mounting - you'll still need to sort out your own wiring and fuel lines for the Walbro pump. Remove the factory fuel pump assembly from the tank, replace the OEM basket with the podio1 basket, install your Walbro 255 pump, and complete your wiring and line connections. Walbro pump, wiring, and installation hardware sold separately.

Note: The Walbro 255 (GSS340/341/342) is rated for gasoline only and is not compatible with E85. If you're running E85, see our Walbro 450/485/525 or TI Automotive E5LM basket options.

What's Included:

• 1x PPA-CF Fuel Pump Basket for Walbro 255 (heat-treated)

Technical Specifications:

• Material: Carbon fiber reinforced polyphthalamide (PPA-CF)
• Carbon Fiber Content: 15%
• Heat Deflection Temperature: 220°C / 428°F
• Chemical Resistance: Gasoline, oils, solvents
• Construction: Heat-treated/annealed for maximum durability
• Compatibility: Walbro GSS340, GSS341, GSS342, F20000312, F20000313
• OEM Bracket Fitment: 16141179119

podio1 - Performance parts designed for those who finish first.
